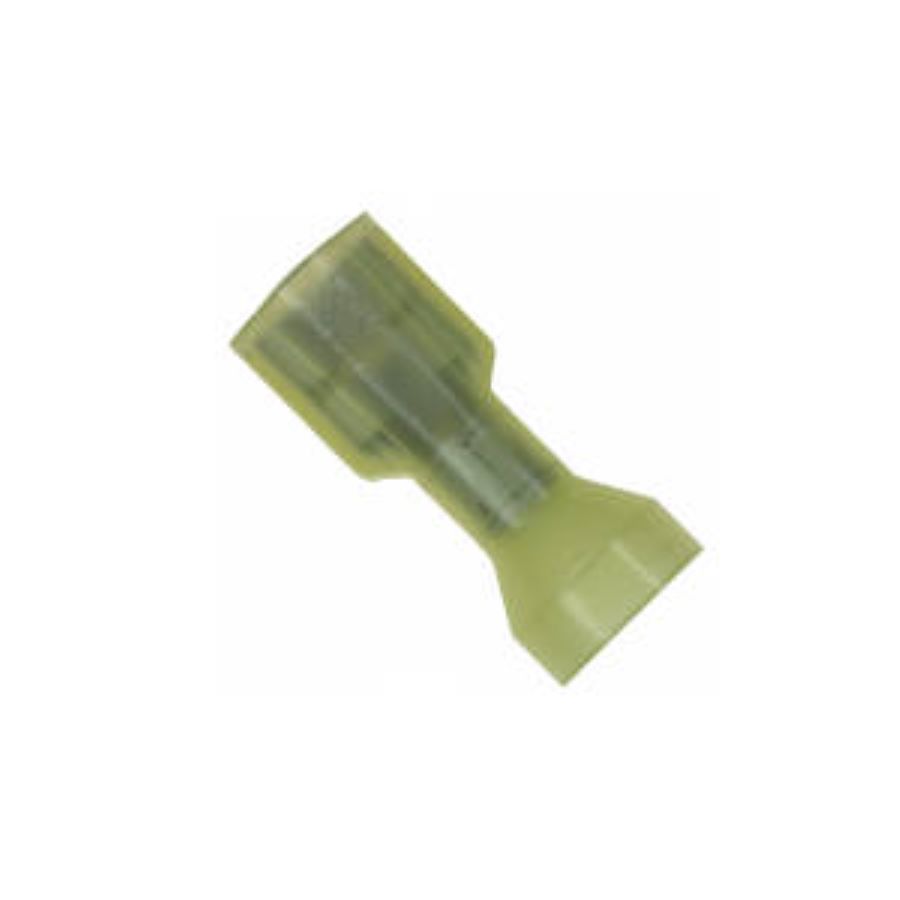

4-520447-2
Manufacturer:
TE Connectivity
Mfr.Part #:
4-520447-2
Datasheet:
Description:
Terminals Free Hanging 12 AWG Female
| Parameter | Value |
|---|---|
| Length | 23.749 mm |
| Termination | Receptacle |
| Material | Brass |
| Packaging | Reel |
| Depth | 10.38 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass |
| Type | Receptacle |
| Flammability Rating | UL94 V-2 |
| Orientation | Straight |
| Lifecycle Status | Production (Last Updated: 2 weeks ago) |
| Color | Yellow |
| Gender | Female |
| Body Material | Brass |
| Tab Width | 6.35 mm |
| Wire/Cable Diameter | 8.128 mm |
| Terminal Material | Brass |
| Wire/Cable Gauge | 12 AWG |
| Insulation | Insulated |
| Insulation Material | Nylon |
| Wire/Cable Type | Discrete |
| Wire Gauge (Max) | 10 AWG |
| Wire Gauge (Min) | 12 AWG |
| Plating | Tin |
| Termination Style | Crimp |
| Insulation Diameter | 8.128 mm |
| Body Plating | Tin |
| Insulated Wire Support | Yes |
| Mating Tab Width | 6.35 mm |
| Tab Thickness | 812.8 µm |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 2 weeks ago) |
| Sealable | No |
| Stud Size | 6.35 mm x 0.81 mm |
Stock: 121437
Distributors
pcbx
pcbxUnit Price$0.60554
Ext.Price$0.60554
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.60554 | $0.60554 |
| 10 | $0.30277 | $3.02770 |
| 50 | $0.23290 | $11.64500 |
| 100 | $0.17915 | $17.91500 |
| 500 | $0.13781 | $68.90500 |
| 1000 | $0.10601 | $106.01000 |
| 3000 | $0.09660 | $289.80000 |
| 5000 | $0.09181 | $459.05000 |
| 10000 | $0.08726 | $872.60000 |
| 30000 | $0.08294 | $2488.20000 |
| 50000 | $0.07883 | $3941.50000 |
